NSP Airwave Foil Set
The new NSP Airwave Hydrofoil mixes high-performance pre-preg carbon with precision milled anodized aluminum. The wings,? mast, and fuselage designs have evolved over several iterations, combining stability, durability, price, and performance.
?The agility and speed that this foil offers are unbelievable when driving the foil into hard cutbacks??
Ty Judson ? International NSP Teamrider
Perfect in small to medium-sized waves, the Airwave suits both light- and heavier riders. Designed for regular surfing and SUP, the NSP Airwave Hydrofoil can be towed and the 3 shims included allow you to change your setup for different conditions:
With low-speed take-off and excellent rider feedback, the NSP Airwave lifts early. An efficient wing design in combination with an incredibly stiff fuselage and mast allow for an extra amount of control and stability, making the NSP Airwave perfect for all disciplines of foiling.
Smooth elliptical curves give you the drive to surf and commit to effortless rail-to-rail transitions. Stability comes in buckets at all speeds, and glide characteristics are great. Foiling is all about feedback and this foil package gives you the feedback required to execute committed turns and extend your glide. A 1325 cm2 front wing in combination with the 330 cm2 back wing leverages your pumping action while creating appropriate lift and stability.
Precision manufacturing means 100% alignment of the wings and heavy-duty construction. The NSP Airwave is ideal for both entry-level and advanced foilers. Downwind specialists tell us this is one of the faster foils on the market right now, allowing riders to almost ride around other foilers on the same trip.
Tune your NSP Airwave with the wide range of aftermarket options to customize your unique foiling style. Different size masts, wings, and back wings are all available.
SPECS OF THE NSP AIRWAVE HYDROFOIL

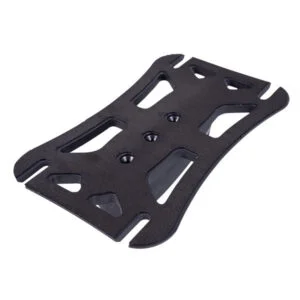

Designed to spread the load, the anodized aluminum base features screw slots instead of holes. This allows for additional fine-tuning and makes assembly even more straightforward. For a great analysis of the different advantages that come with twin tracks, check out this thread on Seabreeze.

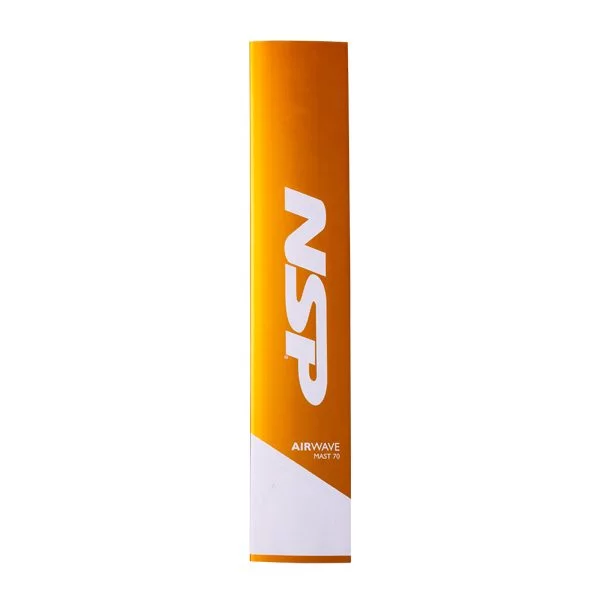

Built from anodized aluminum, the 70 cm mast minimizes drag and maximizes stiffness.

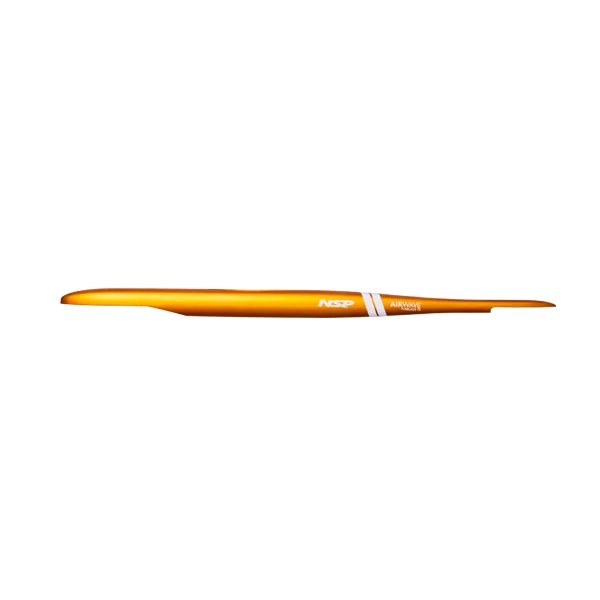

The centerpiece of the foil. this hydrodynamically shaped fuselage measures 70 cm. Made of anodized aluminum, it slots seamlessly onto the mast and holds the front wing, the back wing, and the tuning shims.

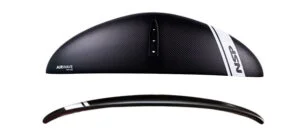

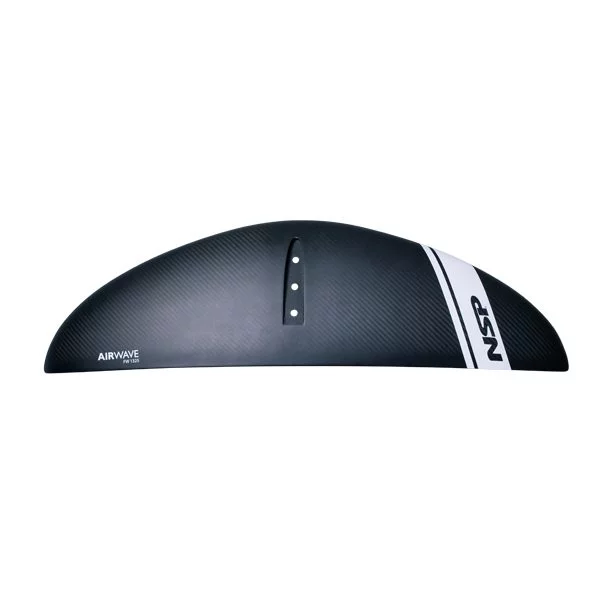

The pre-preg carbon front wing spans 78 cm and is 22 cm wide with a total size of 1,325 square cm. Three screws hold the front wing in place. The 1325 set contains the low-aspect 1325 Front Wing, ideal for both entry-level and advanced foilers who are either lightweight or often enjoy stronger swell at their local spot.
The 1700 Front Wing from the 1700 set is better suited for riders over 95kg, or beginners looking for lift over everything else ? more surface is going provide you that initial lift to get going.

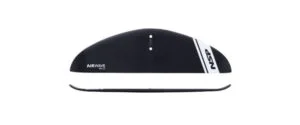

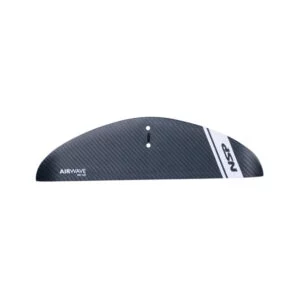

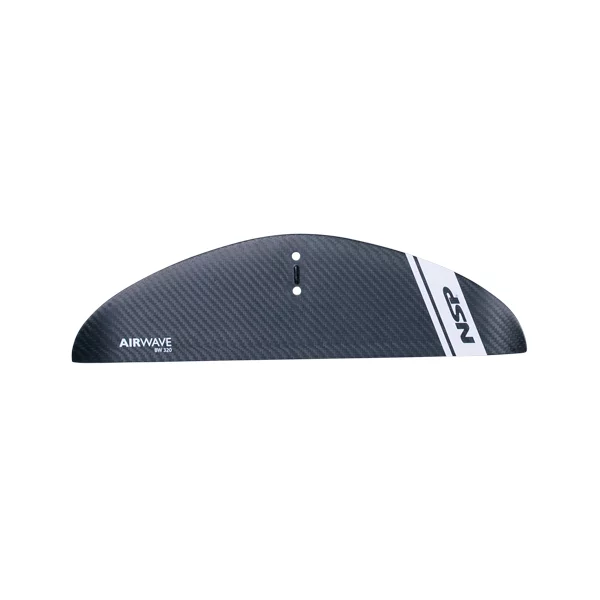

REAR WING 330
The pre-preg carbon front wing spans 39.5 cm and is 11 cm wide with a total size of 330 square cm. The back wing attaches to the fuselage with two screws.
Airwave full set assembled 7.57 kg
Front wing 78cm 1.25kg
Front wing 85cm 1.68 kg (accessories)
Rear wing 39.5cm (default) 180 g
Rear wing 42.0cm (M-style) 180 g?(accessories)

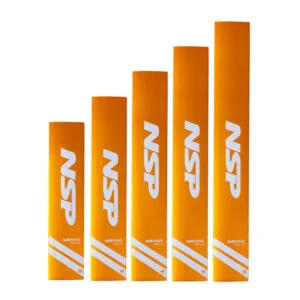

Airwave mast 60cm 1.39 kg?(accessories)
Airwave mast 70cm 1.67 kg
Airwave mast 80cm 1.9 kg?(accessories)
Airwave fuselage 70cm 1.05 kg
Airwave mounting Plate 0.755 kg
